AUTOOL PT630 Car Fuel Pressure Gauge Engine Vacuum Pressure Tester

AUTOOL PT630 Automobile Fuel Pressure Gauge 0-426 PSI Digital Display Automotive Tool for Motorcycle Car Truck

Automotive electronic fuel pressure gauge
It is a newly designed intelligent electronic fuel pressure gauge, which is suitable for pressure measurement of automobile fuel supply system, judging the working condition of fuel system components such as electric gasoline pump and oil pressure regulator, and is a special tool for fuel system inspection and fault diagnosis.

Features:

One-click lock screen, one-click to zero
The built-in pressure sensor is powerful
The pressure unit can be replaced by the user
Good reliability, stable performance and high accuracy

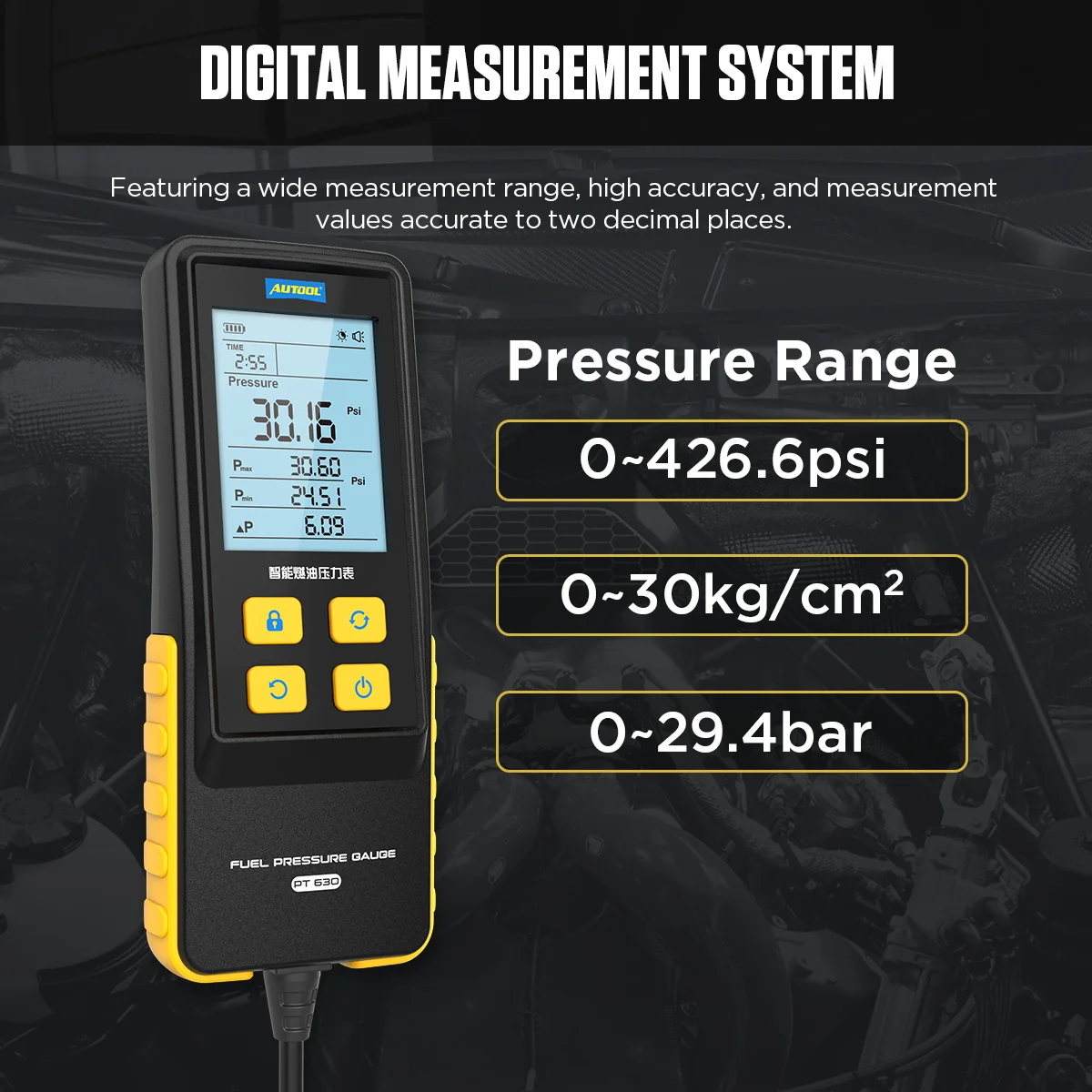

Digital measurement system:

Featuring a wide measurement range, high accuracy, and measurement values accurate to two decimal places.

Pressure Range
0~426.6psi
0~30kg/c㎡
0~29.4bar

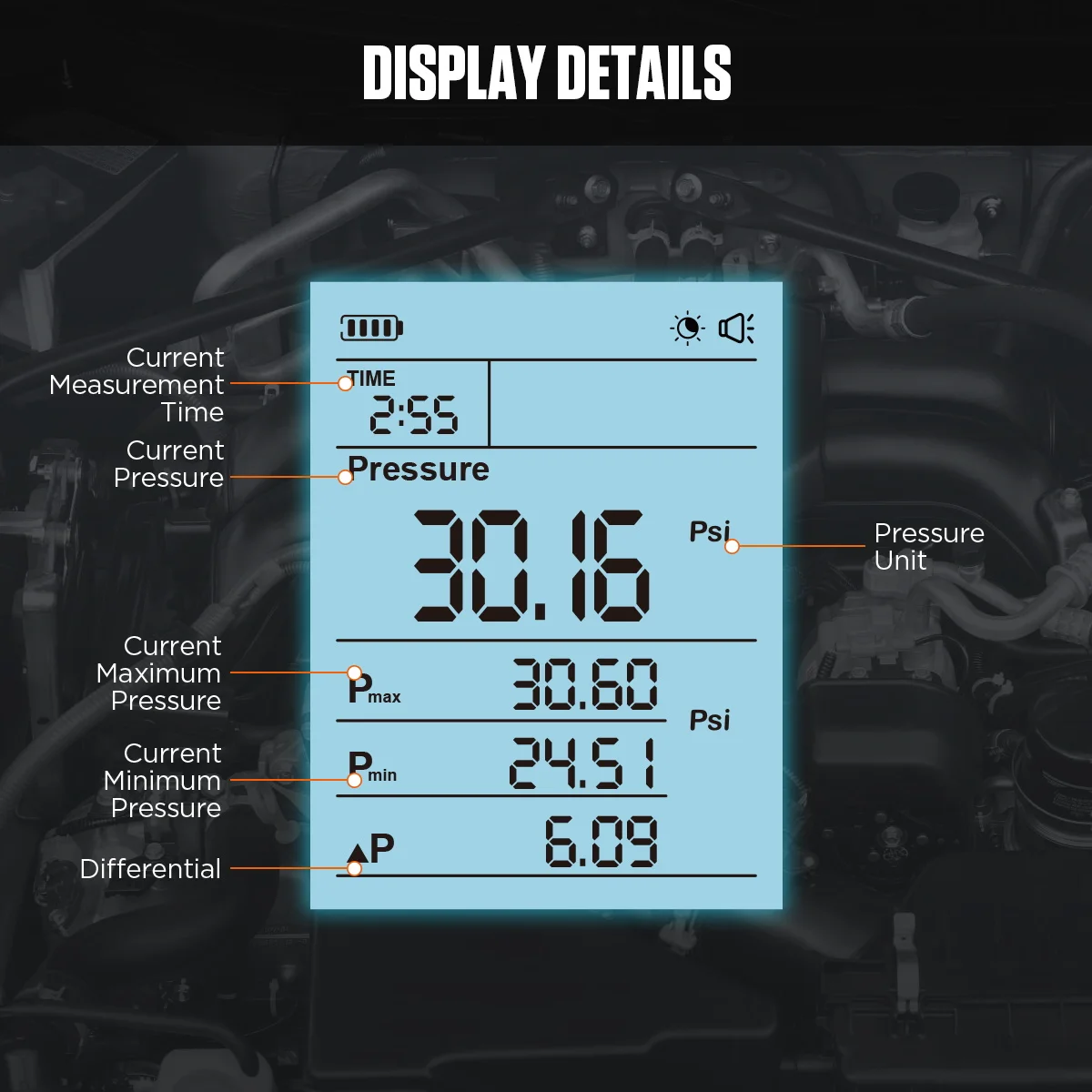

Display details:

Current Measurement
Time
Current Pressure
Current Maximum Pressure
Current Minimum Pressure
Differential
Pressure Unit

Selected riveted copper material:

The adapters are made of riveted copper with high hardness,high wear resistance and oxidation resistance.

High Hardness
High Wear Resistance
Oxidation Resistance

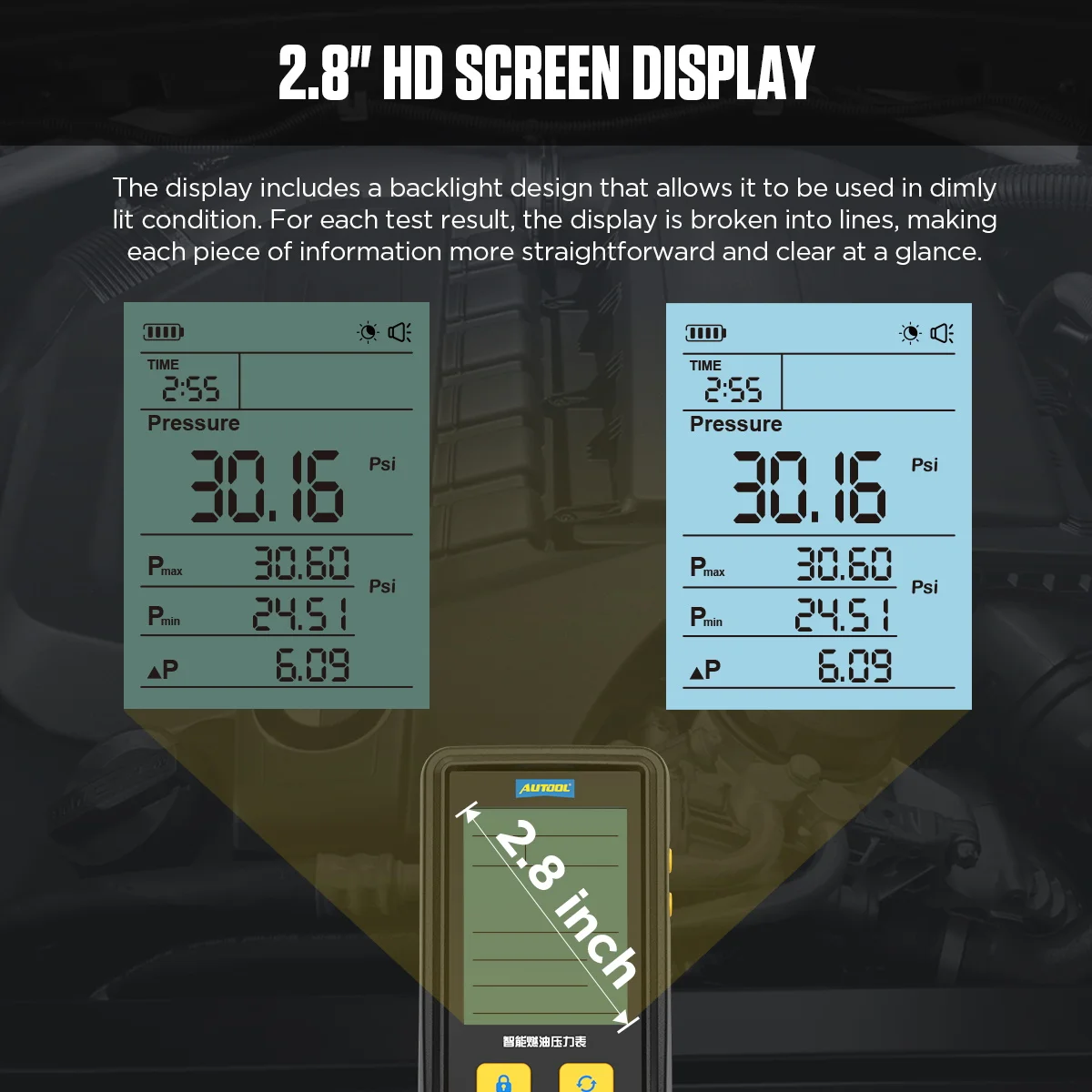

2.8″ HD Screen display

The display includes a backlight design that allows it to be used in dimly lit condition. For each test result, the display is broken into lines, making each piece of information more straightforward and clear at a glance.

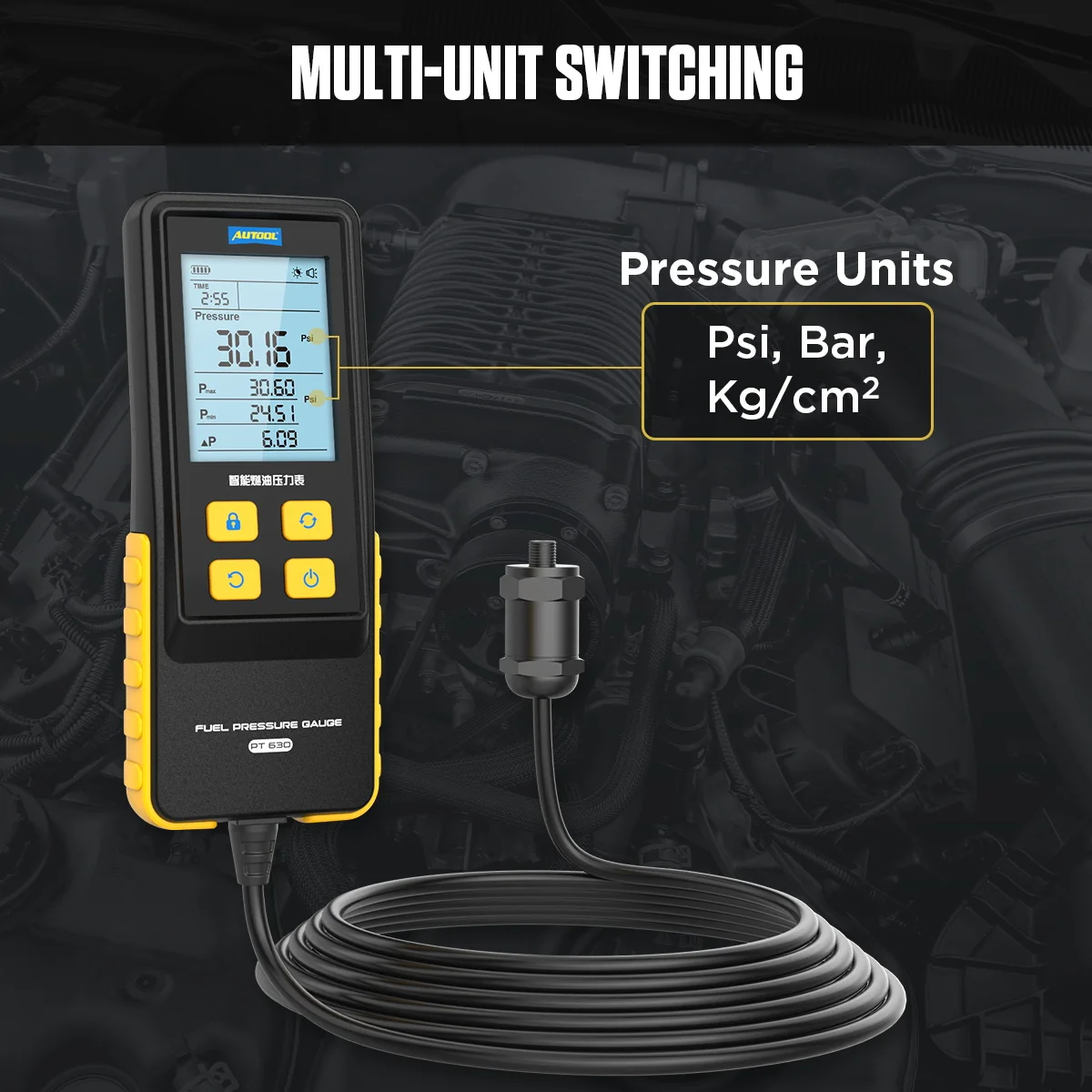

Multi-unit switching

Pressure Units: Psi, Bar, Kg/c㎡

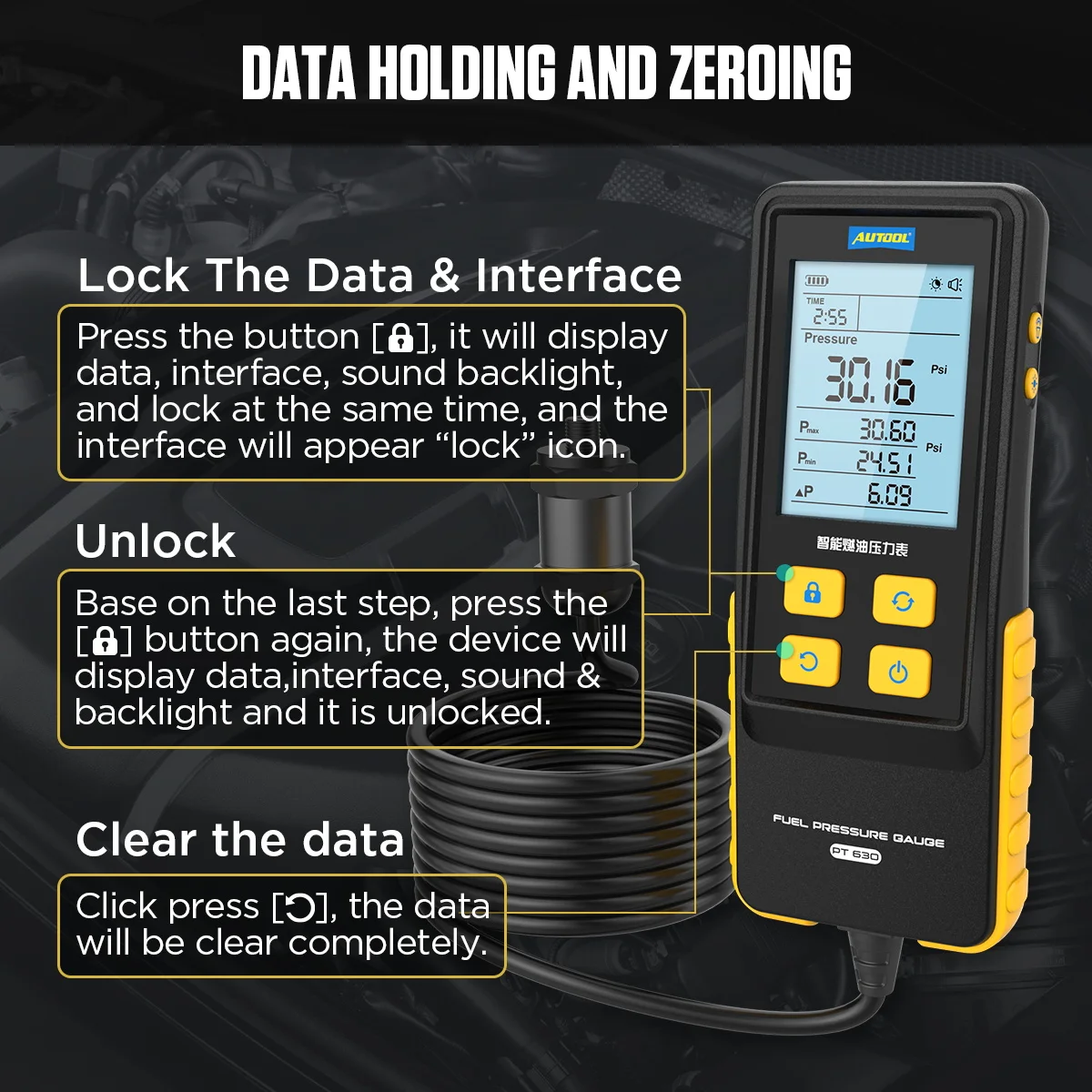

Data holding and zeroing:

Lock The Data & Interface
Press the button , it will display data, interface, sound backlight, and lock at the same time, and the interface will appear lock” icon.

Unlock
Base on the last step, press the button again, the device will display data,interface, sound & backlight and it is unlocked.

Clear the data
Click press [0], the data will be clear completely.

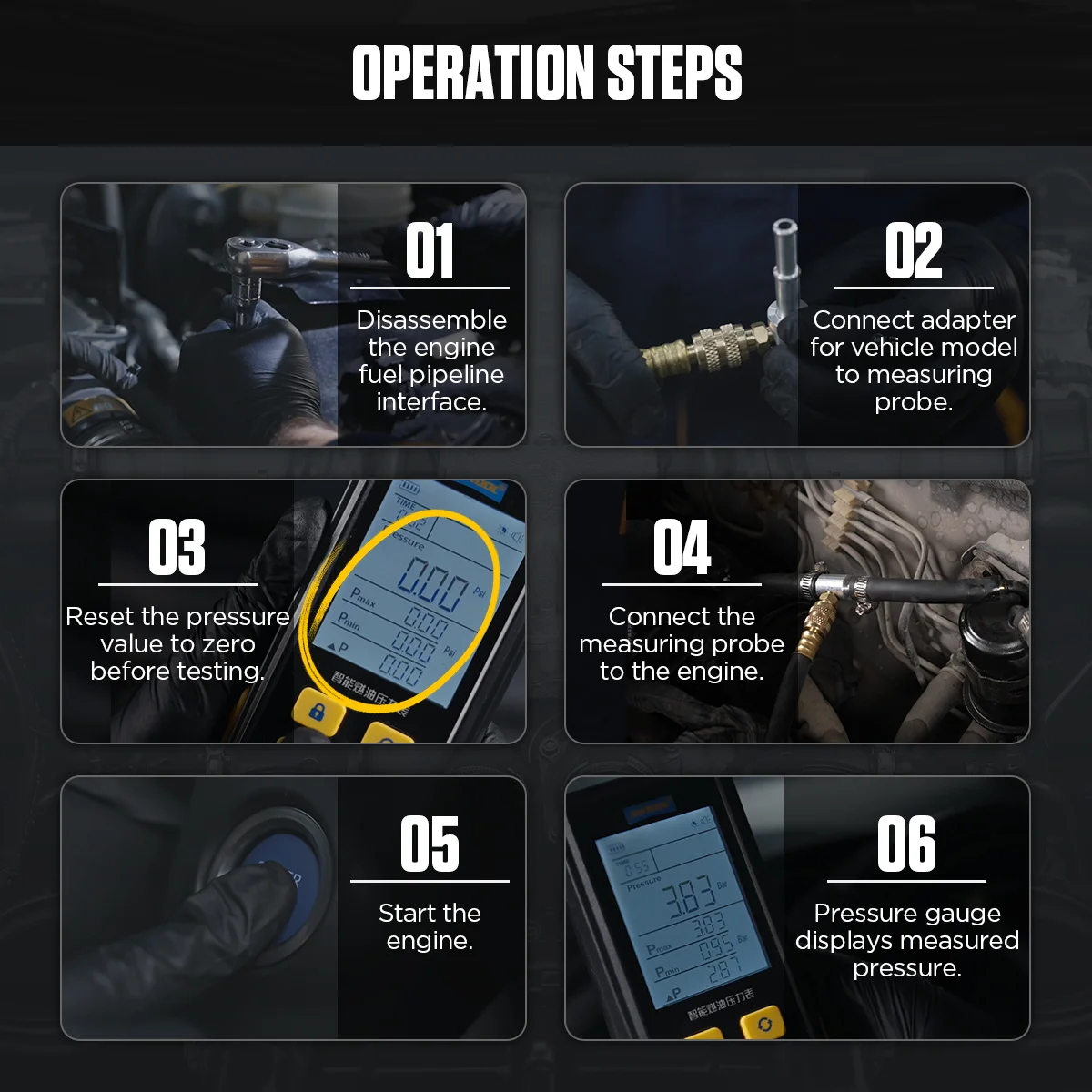

Operation steps:

01. Disassemble the engine fuel pipeline interface.
02. Connect adapter for vehicle model to measuring probe.
03. Reset the pressure value to zero before testing.
04. Connect the measuring probe to the engine.
05. Start the engine.
06. Pressure gauge displays measuredpressure.

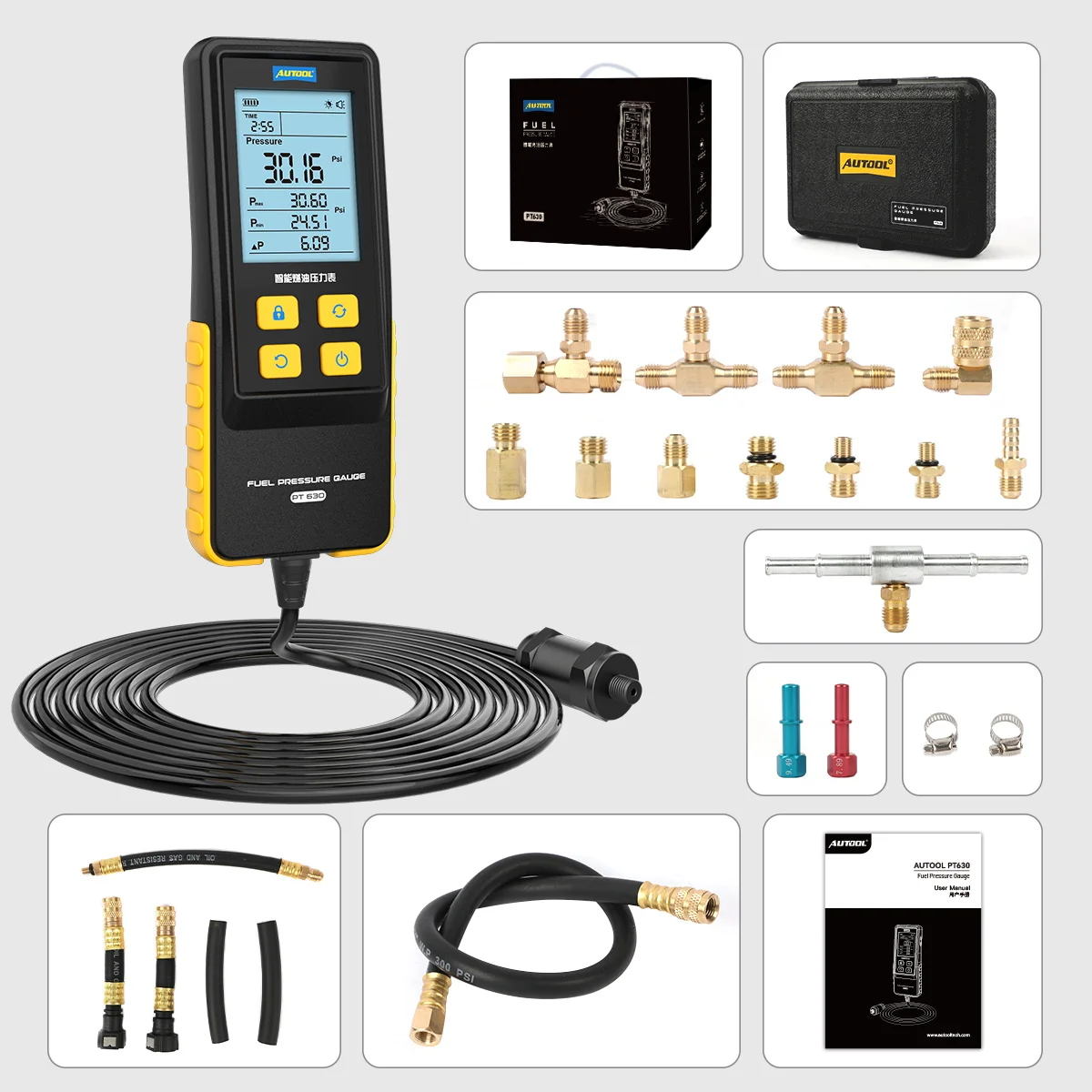

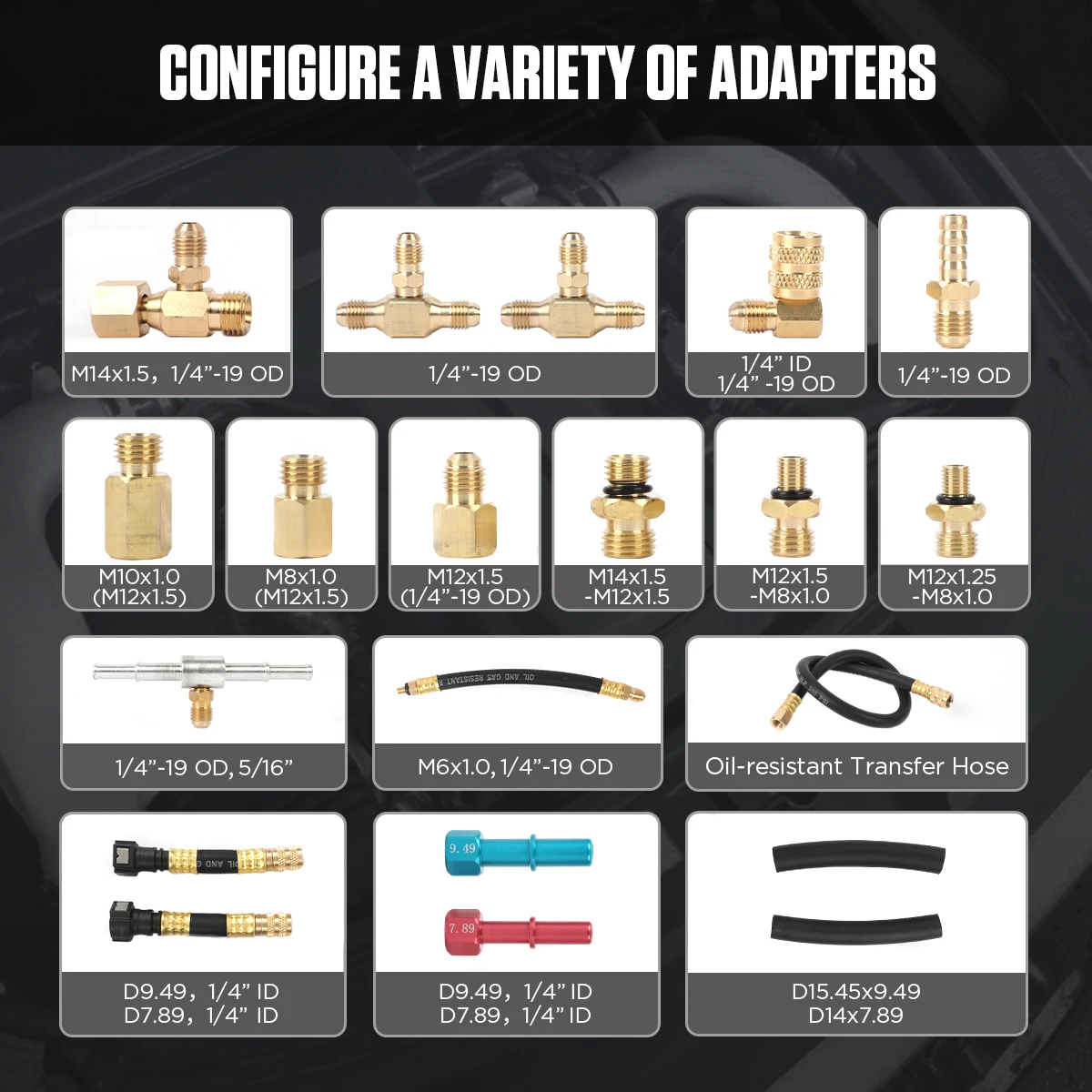

Configure a variety of adapters:

M14x1.5, 1/4″-19 OD
1/4″-19 OD
1/4″ ID 1/4″ -19 OD
1/4″-19 OD
M10x1.0(M12x1.5)
M8x1.0(M12x1.5)
M12x1.5 (1/4″-19 OD)
M14x1.5-M12x1.5
M12x1.5-M8x1.O
M12x1.25-M8x1.0
1/4″-19 OD, 5/16″
M6x1.O, 1/4″-19 OD
Oil-resistant Transfer Hose
D9.49, 1/4″ ID D7.89, 1/4″ ID
D9.49, 1/4″ ID D7.89, 1/4″ ID
D15.45×9.49 D14x7.89

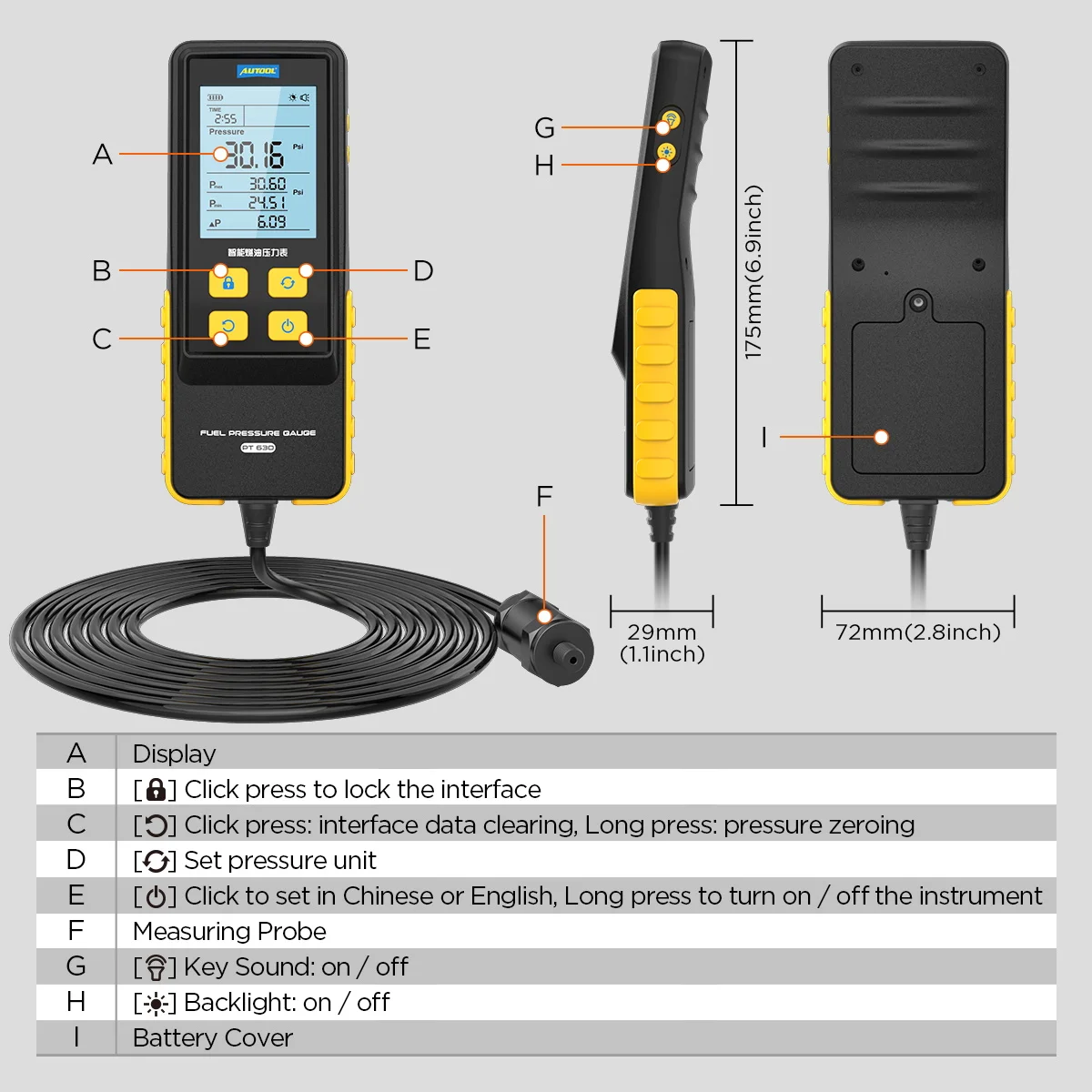

Specifications:

Display screen: 2.8-inch HD screen
Pressure units: kg/cm², PSI, bar
Wire length: 4 m
Supply voltage: 6 V Four batteries in series
Pressure range: 0~29.4 bar
Temperature range: -20~125 °C
Measuring medium: liquid
Power consumption: <1 W
