Thinkcar ThinkTPMS S1 Tire Pressure Sensor 315mhz 433mhz Tire Pressure Monitoring System
Why do you need thinktpms s1 sensor?
Think TPMS s1 sensor helps monitor tire pressure and temperature. It helps you to know the situation of four tires and asks you to take actions in time to avoid puncture and damage to car parts caused by flat tires. It also helps to prevent flat tires, forecast leakage, reduce tire tread, extend tire life, improve fuel efficiency and increase traffic safety.
2. THINKTPMS S1 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use,OE-levelfit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.
3. THINKTPMS S1 sensor is the smallest in the world. Not impact of the Sensor on the car tires during the driving process, ensure the safety in driving. cold and waterproof, high temperature resistance
Features of THINKTPMS S1 sensor
1.High quality metal stem, advanced chip technology
Made of high quality imported chips, 100% tested before leaving the factory. It is resistant to humidity and high temperature. Can work at a temperature of -40 to 120 degrees. Maintaining proper tire pressure can improve fuel power and vehicle performance.
2.Excellent battery performance
The TPMS with high level of tire monitor accuracy and sensitivity perfectly matched with the front and rear wheels, left and right sides means you will get a fairly reliable sensor to monitor tire pressure. Long life batteries will bring a pleasant experience. The normal service life of the battery is 4-6 years. If the parts around the product are properly maintained, the service life will be longer.

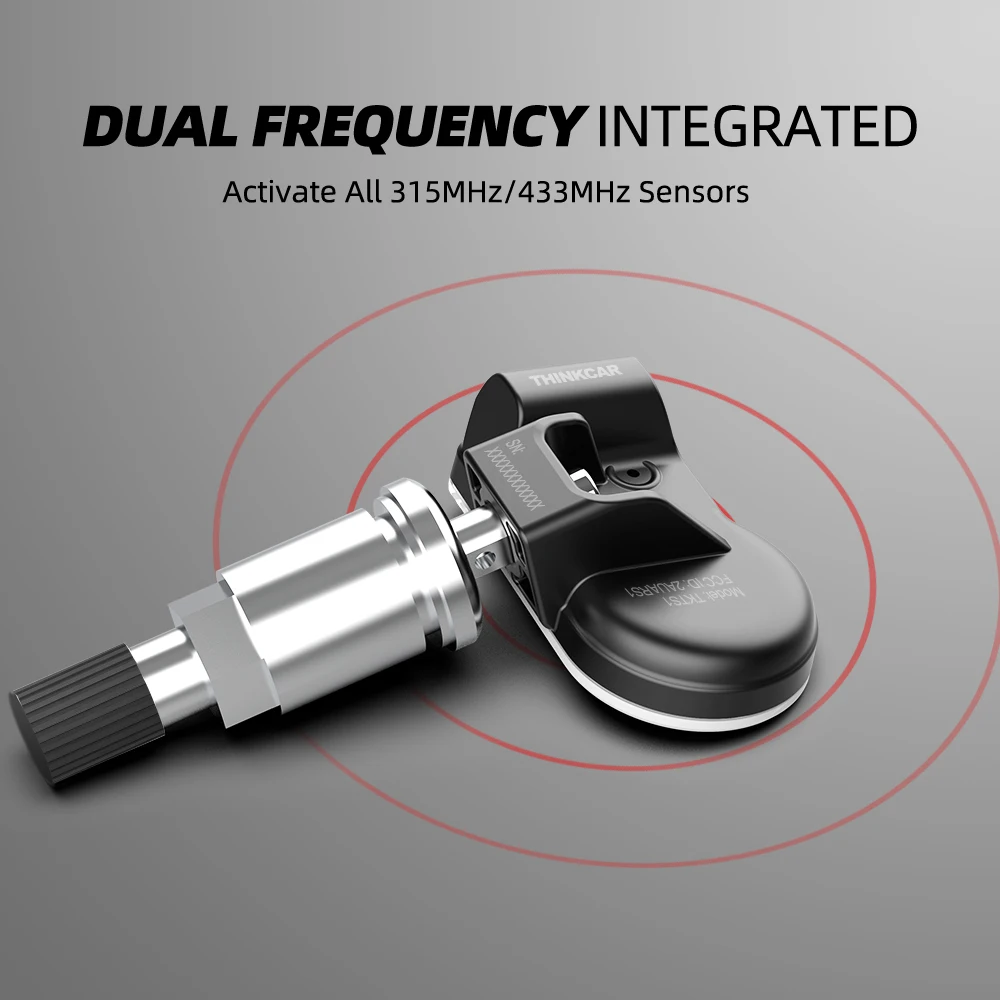

3.Dual 315MHz/433MHz frequency integrated
Activate All 315MHz/433MHz Sensors
4.Replace the original sensor:
Compatible with original tire pressure sensor
5.Unlimited programming:
4-6 years of battery life
6.Waterproof: IP67 Waterproof ,no fear of bad weather
Waterproof, dustproof, rustproof, Anti-theft
Specifications of THINKTPMS S1:
Battery life:4-6 years / 100,000 km
Working temperature:-40 ℃ to + 125 ℃
Storage temperature:-40 ℃ to + 125 ℃
Working humidity:<=90%
Working frequency:433MHz/315MHz
Pressure monitoring range:0-800kpa
Pressure reading accuracy:±10kPa
Temperature reading accuracy:± 5℃
Acceleration (G) Sensor reading accuracy:± 15%
Transmission power:5-8 dBm
battery:3.0V
Waterproof level:IP67
Size:71.5*40*15mm
Net weight:22g

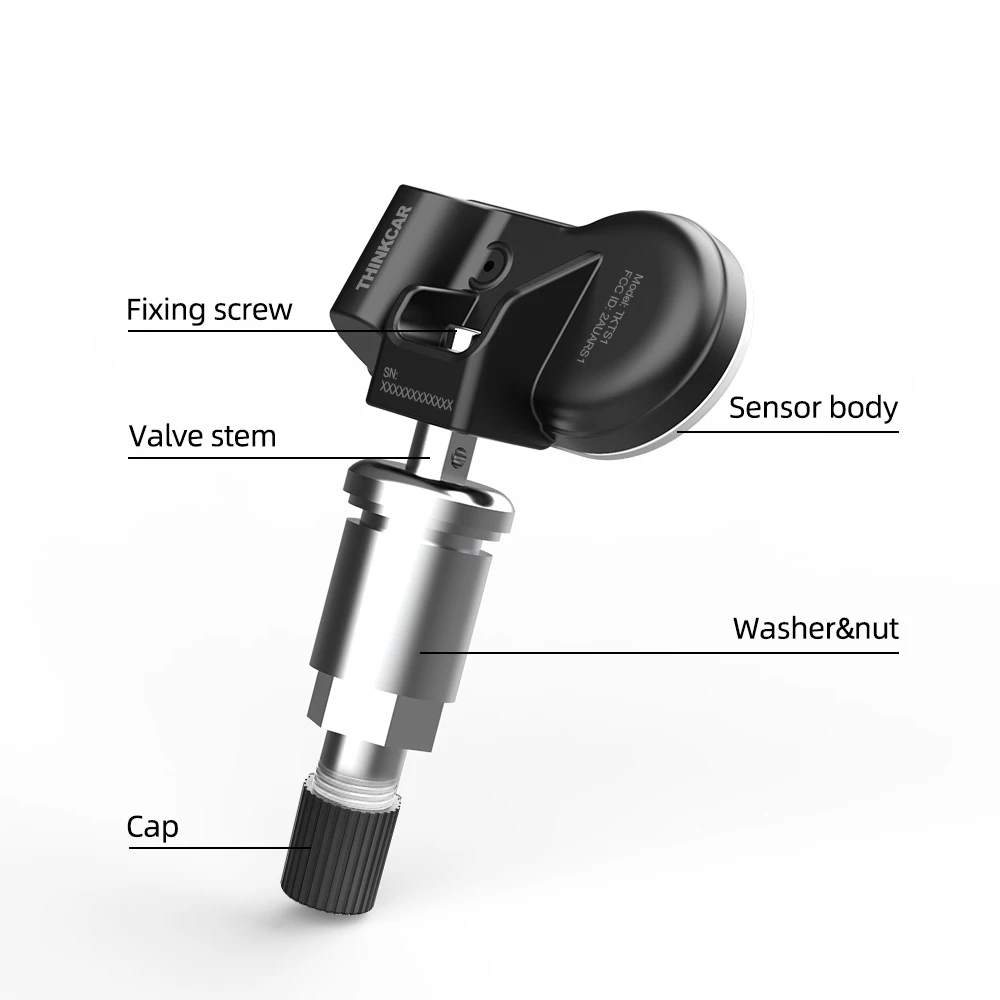

How to Install the THINKTPMS S1 Sensor :
1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance
support car Model list
Support 115+ Car Models
USA:
BXGM,CHRYSLER, AUSTFORD, GM,USAFORD
EUROPE:
ASTONMARTIN,AUDI,BENZ,BMW,BXFIAT,CITROEN,FERRARI,FIAT,GAZ,LANDROVER,MASE,RATI,OPEL,PAZ,PEUGEOT,PORSCHE…
Austrillia:
AUSTFORD,AUSTHOLDEN
Asia:
BAIC,CHANGAN,CHANGCHENG,CHANGHE,DAEWOO,DAIHATSU,DFXK,FLYER,FUTIAN,HAFEL HMAZDA,HONDA,HUACHEN,HYUNDAI,IKCO,INDIANMARUTI,INDIANTATA,ISUZU,IVECO.IZH,JACTY JIAO,JINLONG,JOYLONG,JPISUZU,KIA,LIFAN, LIUWEITY ,LUXGEN,MAHINDRA,MALAYSIA PERODUA,MALAYSIA PROTON,MARUT,MAXUS,MAZDA,MITSUBISHI…

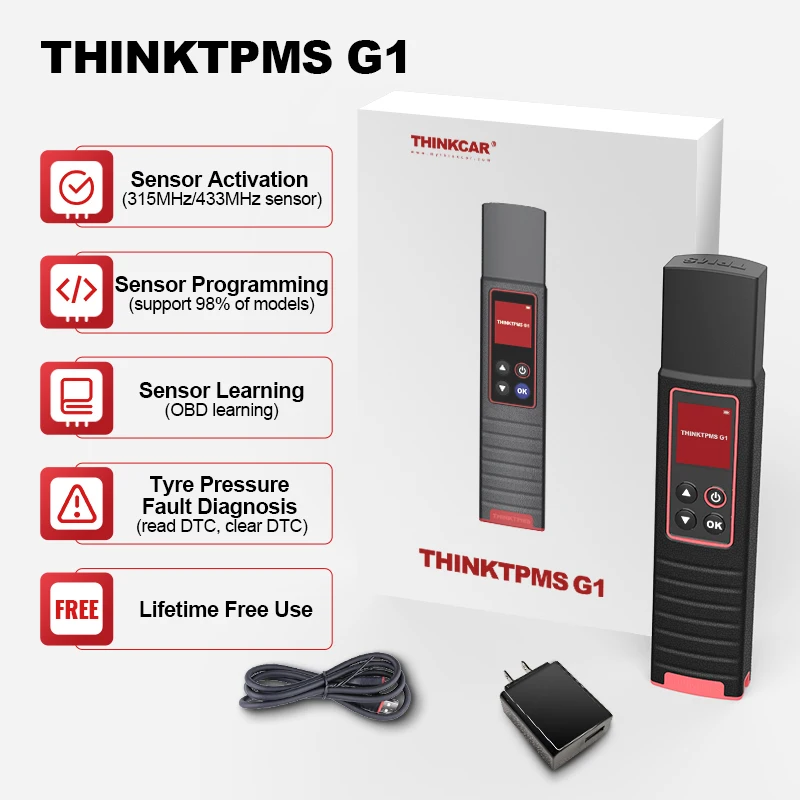

Best Partner With THINKTPMS G1
THINKTPMS G1 is a new generation of tire pressure diagnosis tool, which can realize Sensor Activation, Sensor Programming, Sensor Learning, Tire Pressure Fault Diagnosis. It can be connected to Thinkdiag APP via Bluetooth and used to easily diagnose tire faults on mobile phones. It can also be used with THINKTOOL series products to help you diagnose car tire information.
Support Sensor Activation:
Thinktpms G1 can activate all 315MHz/433MHz tire pressure sensors, and can read, copy, write sensor IDs and read tire pressure data (pressure, temperature, battery status)
Support Sensor Programming:
Thinktpms G1 supports unlimited repeat programming function, covering more than 98% of imported models with tire pressure system, and supports multiple ID generation methods: manual, copy, and automatic creation
Support Sensor Learning:
The tire pressure matching learning function can perform tire pressure fault diagnosis through prompt learning steps, including code reading and code clearing.
